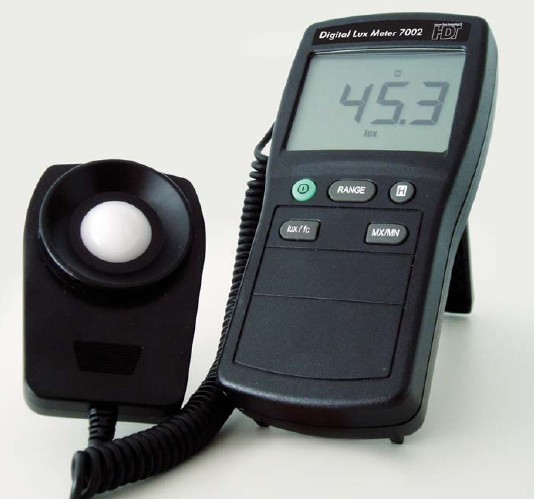

Information about luxmeter
Information about luxmetersFor all works, a sufficient brightness is required which is being achieved by good illumination. An insufficient illumination generally leads to symptoms of fatigue and may lead directly or indirectly to occupational accidents. According to the assignments, different illuminations are recommended by the boards of standards. For simple works, illuminations from 100 to 250 lux are sufficient, for precision works more than 1000 lux are required.


Type of Room
Nominal illumination in Lux
Stores with large storage goods
50
Stores with searching assignment
100
Stores with reading assignments
200
Canteens
200
Toilettes
100
Sanitary rooms
500
Rooms with machines
100
Offices
500
Technical design office
750
Conference rooms
300
Rooms for color testing
1000
Rooms for assembly, test benches
1000
Rooms for the assembly of small parts
1500
Rooms for data processing
500
Routes in buildings for persons
50
Routes in buildings for vehicles
100
Routes in buildings (stairs)
100
Routes in buildings (conveyor belts)
100

It is the task of planers, architects and electrical engineering technicians not only to calculate and to install the lighting installation,but also to prove by measurements that there is sufficient illumination. But also within the maintenance of buildings or servicing of industrial plants, the supplier for the building, the caretaker or the occupational safety specialist have to prove by measurements that there is sufficient illumination.

Operators
The measurement of the illumination is very important for lots of operators:
- Planers of illumination installations
- Architects- Installation companies
- Occupational safety specialists
- Estimators- Caretakers, facility management
- Safety illumination
- Producers of lamps

Sizes and units of the lighting engineering
Luminous flux Φ
Luminous flux is the measuring unit for the luminous power emitted by a source of light.The unit of the luminous power is indicated in lumen (lm).

Illumination E
The illumination E is the luminous flux which impinges on a certain surface. The measuring unit of the illumination E with the unit lux(lx) is the luminous flux (lm) divided by the surface (sqm).

Luminosity l
The luminosity is the measuring unit for the intensity of the light emission of a source of light depending on the direction of the radiation. The measuring unit is Candela (cd).

Light density L
The light density L stands for the effect of brightness of a bright or reflecting surface.The unit is Candela per square meter (L =cd/sqm)

Measurement error in case of illumination measurement
Due to the formation of shades and reflections of items and bodies, measurement errors may occur. If the sensor is always positioned horizontally and as far as possible from the body, the possible errors will be reduced to a minimum.
