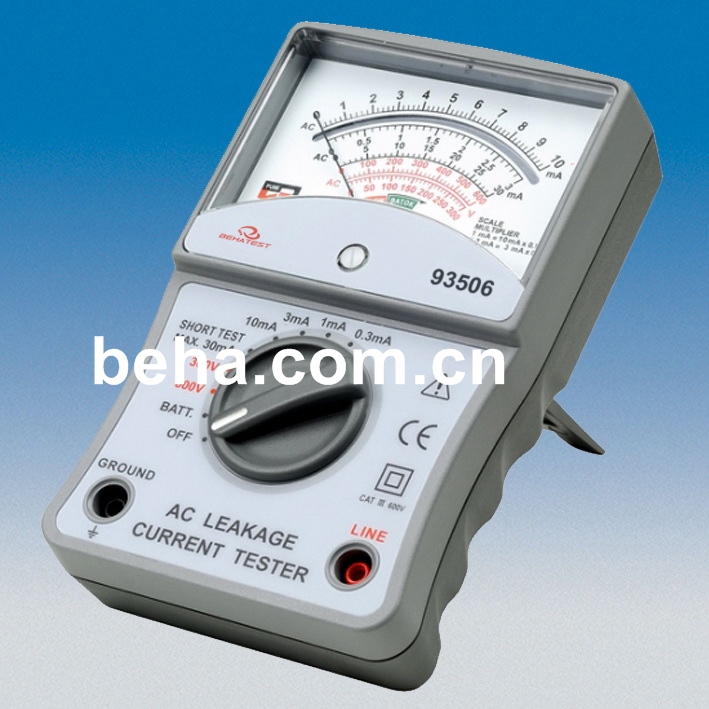

AC Leakage Meter

Model: 93506

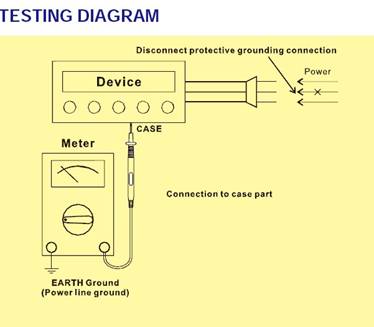

The 93506 are special purpose AC milliammeter designed to measure hazardous leakage current from electrical appliances and other power line operated equipment.
It's used for:
moter operated appliances : Washing machine, electrical pump, lawn mower, refrigerator, electric drill, electric fan, vending machine.
Electrothermal appliances : Toaster, electric stove, electric curling iron, hair dryer.
Electronic appliances : Microwave ranges, TV receiver, welding machine.
Light source appliances : Projector, duplicator and photographic enlarger.
Other Appliances : Portable generator, burglar alarm, medical and dental equipment.

Features:
● High quality movement.
● Small and lightweight, easy to use and storage.
● Mirror scale : makes reading pointer easy.
● With stand : makes reading and measuring easy.
● 200μA full scale value.
● Fuse protected.
● Low battery indication.
● Meets : EN61010-1 CAT, III 600V EN61326-1

AC Leakage Currnet
Measuring Range	0.3mA - 1mA - 3mA - 10mA - 30mA
Accuracy	± 2% F.S.
Input Resistance	1.5 KΩ
AC Voltage
Measuring Range	0-300 / 0-600V
Accuracy	± 2% F.S.
Input Impedance	300V 1MΩ / 600V 2MΩ
General
Power Supply	1 x 9 V, IEC 6LR 61
Low Battery Indication	<7V
Dimensions	160 x 100 x 45 mm
Weight	360 g (Battery Included)
