- Contact Voltage Detector
9082KB Contact High Voltage Detector
Model:9082KB
● Telescopic High Voltage Detector
● Telescopic, compact, light-weight. easy to use and handy.
● High-voltage detectable, The equipment, whether in stretched state is available for voltage detection in high-tension.
● Easy to recognize indication, Intermittent lighting in red of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable at a full daylight, noisy location.
Details

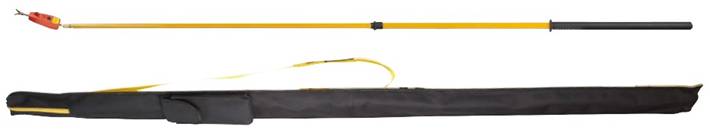

Contact High Voltage Detectors (Telescopic & Contact)
Model: 9082KB
The detector detects a high and extra high voltage in AC lines. An elongate insulation rod permits checking of high voltage circuits at safe distance for voltage.
Also it is telescopic, compact, light-weight, easy to use and handle.
Measuring Voltage Range: 3kV ~ 82kV
Overall Length: 1370~2450 mm
Features:
● Telescopic, compact, light-weight. easy to use and handy.
● High-voltage detectable, The equipment, whether in stretched state is available for voltage detection in high-tension.
● Easy to recognize indication, Intermittent lighting in red of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable at a full daylight, noisy location.

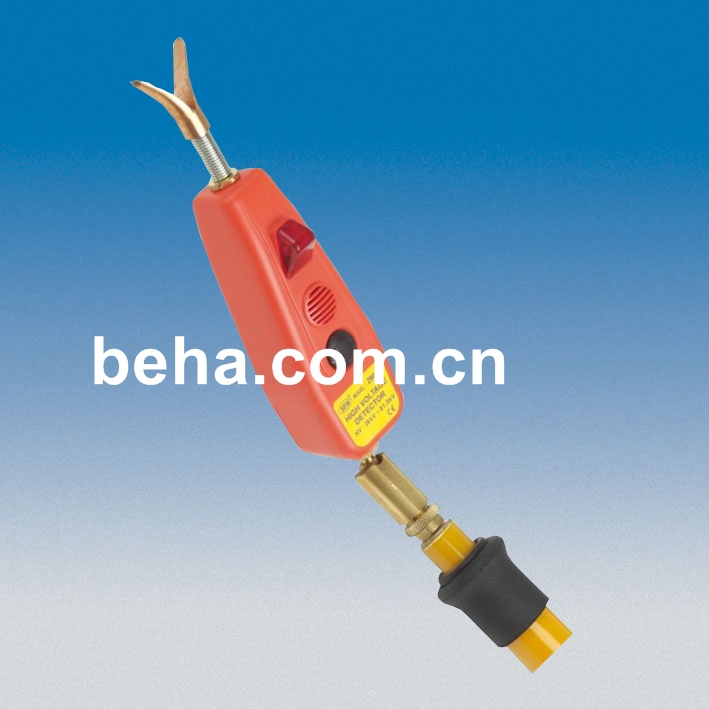

● Water proof, The detecting head, being tightly enclosed, is free from any trouble due to dust, water.
● IEC/EN 61243-1, 60068-2-6, 60068-2-32, 60068-2-14
Technical Data:
|
Measuring Range
|
3kV ~ 82kV
|
|
Operation Start Voltage
|
2.7kV (To ground)
|
|
Display
|
Light : flashing red light
Sound : intermittent sound
|
|
Overall Length
|
Retracted : 1370 ± 50mm
Extracted : 2450 ± 50mm
|
|
Frequency
|
50 / 60Hz
|
|
Operating Temperature
|
-10℃ to +50℃
|
|
Battery
|
2 button cells LR44 (1.5V)
|
|
Weight
|
590g (battery included)
|
|
Withstand Voltage
(On insulating rod)
|
100kV / 300mm : 5 minutes
|
|
Insulation Resistance
|
2000MΩ min. by 1kV/DC megger at the same testing location as withstand voltage
|
|
Leakage Current
|
100uA or less than 100uA at withstand voltage test
|
|
Construction
|
Water proof
detecting head impervious to water
|
Scope of Supply:
1 pc Contact High Voltage Detector 9082KB
1pc carry bag
2 pc button cells LR44 (1.5V)
1 pc Instruction Manual
