8003 Digital Tachometer

Model:8003

HDT Digital Tachometer 8003
• Optical and mechanical measurement Rotation speed
• Digital Tachometer for accurate determination for revolution
• Counter function

Details

Download Data Sheet

HDT Digital Tachometer

Model. 8003

Optical and mechanical measurement

Features
• Digital Tachometer for accurate determination for revolution

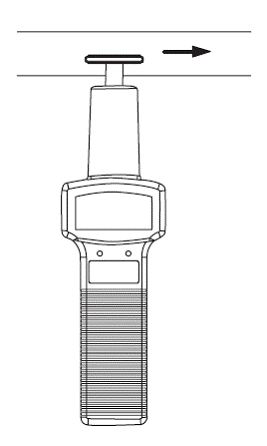

• Display of U/min, m/min, ft/min, yd/min
• Optical (contact-free) or mechanical measurement
• Counter function

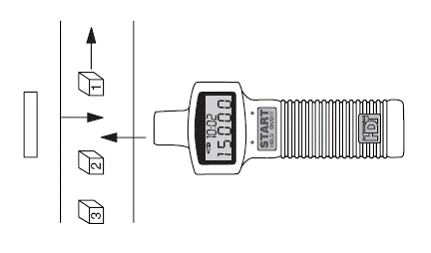

• Optical measurement is visible by means of a redmodulated light beam
• Incl. accessories and carrying case

Technical Data

Display	5 digit LCD
Measurement Range	10...99999 U/min
Resolution	0.001
Accuracy	±(0.04% + 2 rdg)

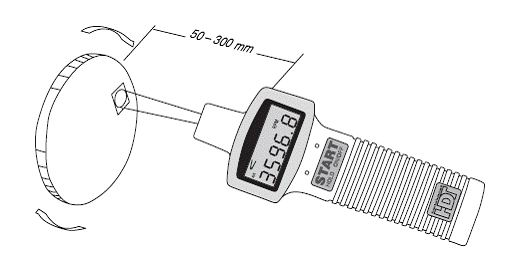

Measurement Distance	50...300 mm
Power Supply	Battery 4x 1.5V IEC LR06
Dimension	approx. 172 x 63 x 36 mm
Weight	approx. 190 g

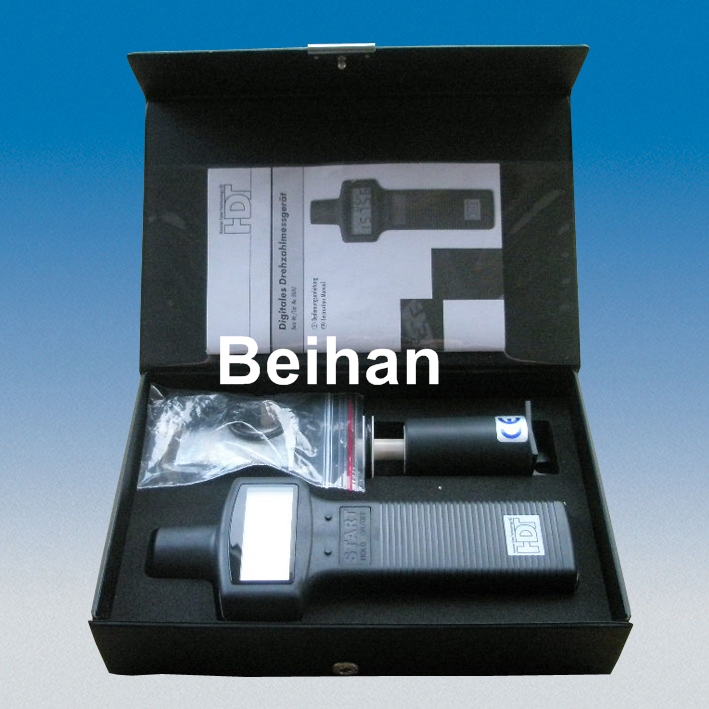

Scope of supply

1 pc HDT Digital Tachometer 8003

4 pc Batteries 1.5 V IEC LR06

1 pc Carrying Case

1 pc Instruction Manual

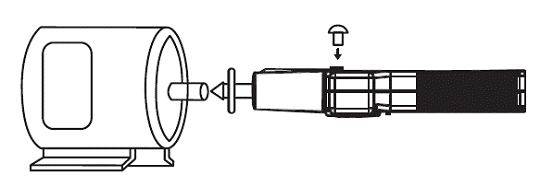

Mechanical adapter

Reflection Sticker
