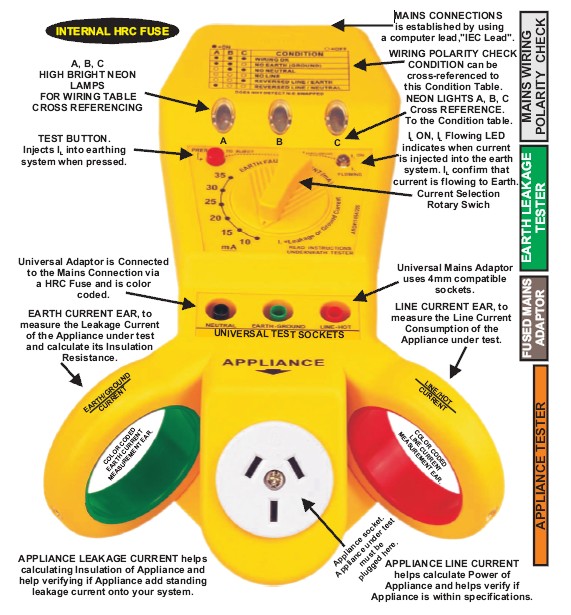

Features:
• Mains wiring polarity check.
• ELCB/RCD testing.
• Measuring ear for line current.
• Measuring ear for leakage current.
• Helps calculate insulation resistance.
• Helps calculate power consumption.
• Helps fault finding of standing earth fault.
• Fused main adapter.
• Appliance testing (with the ad of a clamp meter).
• Fused appliance socket.
• No batteries required.
• HRC fuse inside.
• Fused, color-coded universal test sockets.
• Universal mains IED Lead.

Specifications:

Voltage / Power Input	Universal IEC LEAD 240V/10A
Dimensions	223(L)x152(W)x67(D)mm
Weight	Approx. 318g
Accessories (to use appliance test feature)	Leakage clamp
Wiring Polarity Check
Nominal Voltage Frequency Mains Voltage Tolerance	220-240Vac 50/60Hz ±10%
ELCB / RCD Tester
Nominal Voltage Frequency Current Tolerance	220-240Vac 50/60Hz Proportional (current proportional to Line to Earth Voltage)
Universal Test Sockets/ Appliance Tester
Nominal Voltage Frequency Mains Voltage Tolerance Fused	220-240Vac 50/60Hz ±10% 10A
Appliance Line Current Coil/ Appliance Earth Current Coil
Line Current Fused Type	Measured by current clamp



Scope of Supply:

1 pc 9101DB

1 pc Test lead with Schuko plug system

3 pc Crocodile clamps Test lead with safety plug

1 pc Instruction Manual
