- Earth Resistance Testers

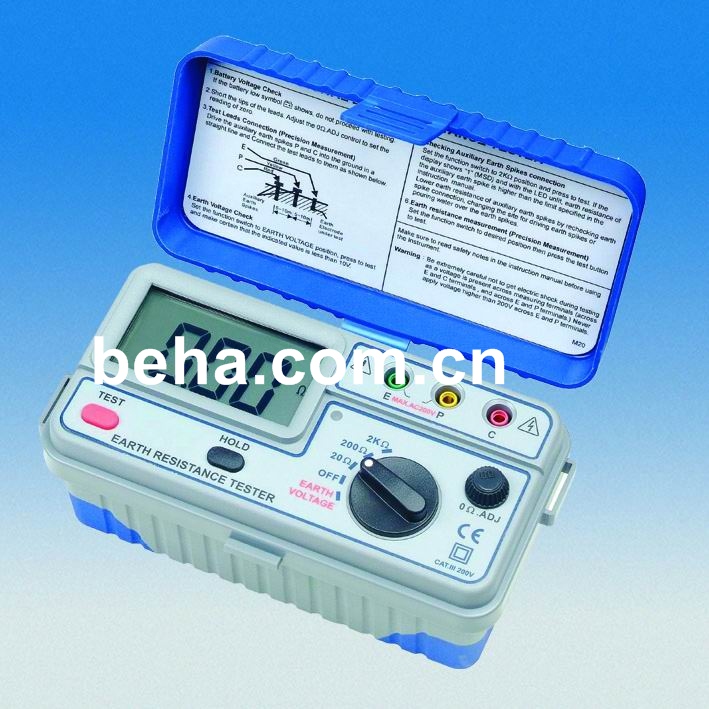

91120 BEHATEST Earth Tester
Model:91120
● Capable of measuring earth voltage.
● 2mA measuring current permits earth resistance to test without tripping earth leakage current breakers in the circuit.
● Test leads are supplied as standard accessories for simplified two-wire measuring system.
● 0 Ohm adjustment.
● Data hold function.
Details
BEHATEST Earth Resistance Tester
Model: 91120
Introduction:
• The 91120 is a "professional instrument".
• The instrument is suitable for the testing of single earth electrodes such as lightning conductors and other small earthing system.
• The resistance of conductors such as continuity and conduit coupling joints can also be measured.
• Two-terminal operation measurement, which reduces the accuracy, can also be done by shorting P and C terminals.
• Earth resistance can be Measurement directly from 0.01 Ω up to 1999 Ω.
• The reading is displayed on a large, easy-to-read digital display.
• It has a zero 0 Ω adjustment setting that is controlled by a dial feature.
Features:
● Capable of measuring earth voltage.
● 2mA measuring current permits earth resistance to test without tripping earth leakage current breakers in the circuit.
● Test leads are supplied as standard accessories for simplified two-wire measuring system.
● 0 Ohm adjustment.
● Data hold function.
● Battery operated.
● Battery life indicator.
● Standard accessories for 3T and 2T.
● Designed to met IEC/ EN 61010-1, EN 61557-1, EN 61557-5. EN 61326-1. CAT III 200V.
● Calibration performed with supplied test leads.
Technical Data:
|
Display
|
3 1/2 digit (1999 counts)
|
|
Earth Resistance
|
0-20 /0-200 /0-2000Ω
|
|
Resolution
|
0.01/0.1/1Ω
|
|
Accuracy
|
±(2%rdg+2dgt)
|
|
Test current
|
2mA/820Hz
|
|
Earth Voltage
|
0-200V/ AC (40-500Hz)
|
|
Accuracy
|
±(1%rdg+2dgt)
|
|
Open Circuit Indication
|
LED will be unlit
|
|
Low Battery Indication
|
symbol appears on the display
|
|
Data Hold Indication
|
symbol appears on the display
|
|
Over Range Indication
|
"1" (MSD)
|
|
Power supply
|
8 x 1.5 V, IEC LR6
|
|
Safety complying with
|
EN 61010-1, EN 61557-1, EN 61557-5. EN 61326-1
|
|
Measurement category
|
CAT III 200V
|
|
Dimensions
|
175 x 85 x 75 mm
|
|
Weight
|
Approx. 600g
|
Scope of Supply:
1 pc Earth Resistance Tester 91120
3 pc Test leads (15m, 10m, 5m)
2 pc Auxiliary earth spikes
1 pc Simplified Test leads
1 pc Carrying Case
8 pc Batteries 1.5 V, IEC LR6
1 pc Instruction Manual
