94236 Earth Resistance & Resistivity Tester

Model:94236
Price:0US$

● 94236 Earth Resistance & Resistivity Tester
● 2-wire test, 3-wire test, 4-wire test.
● Auto-ranging microprocessor controlled.
● PC interface connection & operation.
● Optical RS-232 USB to data transmission.
● Earth testing at 20Ω, 200Ω, 2000Ω.
● Earth resistivity (ρ) test.
 Details



Earth Resistance & Resistivity Tester

Model: 94236

2-wire test, 3-wire test, 4-wire test.
RE: 0~2000Ω
Auto-calculation ρ: 0.06~628 kΩ.m
Memory save: 200 measurements
Optical RS-232 to USB data transmission.

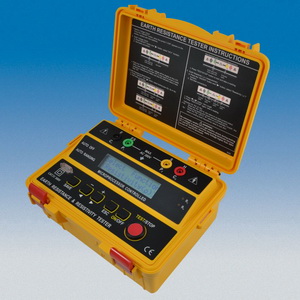

The BEHATEST Earth 94236 is a handy test and measurement instrument for testing Earth resistance and Soil resistivity.
Memory save Available store up to 200 readings, Optical RS-232 to USB data transmission to PC.
The tester has been designed and tested according to EN 61010-1, EN 61326-1, EN 61557-1, EN 61557-5 and other safety standards.

Features:
● 2 Lines x 16 Characters large LCD.
● 2-wire test, 3-wire test, 4-wire test.
● Auto-ranging microprocessor controlled.
● PC interface connection & operation.
● Optical RS-232 USB to data transmission.
● Earth testing at 20Ω, 200Ω, 2000Ω.
● Earth voltage measuring : 0~300V AC.
● Earth resistivity (ρ) test.
● Automatic C spike check.
● Automatic P spike check.
● Auto power off.
● Data hold.
● Memory save feature (up to 200 measurements)
● Interval between auxiliary earth spikes is 1.0~50.0m.
● CAT IV 300V
● IEC/EN 61010-1
   IEC/EN 61326-1
   IEC/EN 61557-1
   IEC/EN 61557-5

Technical Data:
Measuring Ranges

(ρ= 2 x π x L x R)
Earth Resistance: 0~20Ω / 0~200Ω / 0~2000Ω
Earth Voltage: 0~300.0V/AC
Earth Resistivity: 0.06~6.28 kΩ.m
0.62~62.8 kΩ.m
6.28~628 kΩ.m
Accuracy
Earth Resistance: ± (2%rdg+3digits)
Earth Voltage: ± (2%rdg+3digits)
Resolution
0~20Ω: 0.01Ω
0~200Ω: 0.1Ω
0~2000Ω: 1Ω
Measurment System
Earth resistance by constant current inverter 820Hz approx. 2mA
Memory save
200 measurements
Temperature & Humidty
Operating: 0℃~50℃/ ≤80% R.H.
Storage: -10℃~60℃/ ≤80% R.H.
Power supply
8 x 1.5 V, IEC LR6
Dimensions
250 x 190 x 110 mm
Weight
Approx. 1.5kg (battery included)
Safety Standards
CAT IV 300V
IEC/EN 61010-1
IEC/EN 61557-1
IEC/EN 61557-5


Scope of Supply:
1 pc BEHATEST Earth 94236
1 pc Data transmission cable USB to RS-232
1 pc Software Compact disk (CD) for PC interface
1 set Test leads (red-15m, black-10m, yellow-10m green-5m)
1 set Auxiliary earth spike x 4
1 pc Instruction manual
1 pc Carrying case
8 pc Batteries 1.5V, IEC LR6
