- Wire Sorter
2/12 Wire Sorter
Model:2/12
2/12 Wire Sorter
• Standard signal transmitter identifies up to 12 lines
• Standard signal transmitter identifies up to 12 lines
• Clear indication of short circuits, open circuits, or interruptions
• Integrated continuity tester
Details
2/12 Wire Sorter
Model: 2/12
Model: 2/12
Wire Sorter for 12 lines
Key Functions
• Wire Sorter Set for fast detection of up to 160 lines(possible with several signal transmitters)
• Standard signal transmitter identifies up to 12 lines
• Clear indication of short circuits, open circuits, or interruptions
• Integrated continuity tester
General Information
• Set comprising of a transmitter and a receiver in a handy carrying case
• Transmitter is supplied by receiver
• Simultaneous indication of 2 lines

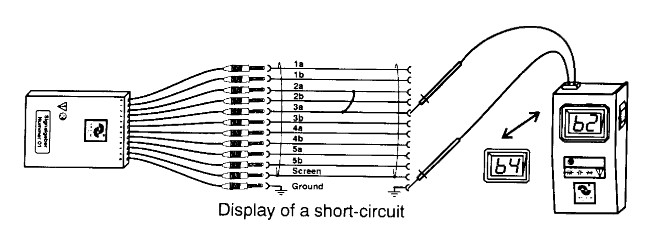

• Indication of short circuits, interruptions, mixed wires, earth and ground connection
• Applicable up to 10 k?...test circuit resistance and aline capacity of up to 1 µF
Special Features
• Time consuming «beeping» and «belling out» with the help of a second person is now a thing of the past
• No reference line required
Technical Data
|
Display
|
LED, 2x7-Segment-Display
|
|
Maximum line Resistance (Line Capacity)
|
10 k?(1µF)
|
|
Maximum Line Length
|
10 km (for telecommunication cable)
|
|
Power Supply
|
1 x 9 V, IEC 6LR61(Receiver)
|
|
Dimensions
|
59 x 79 x 15 mm (Transmitter)
64 x 132 x 35 mm (Receiver)
|
|
Weight
|
85 g (Transmitter)
180 g (Receiver)
|
Scope of Supply:
1 pc Transmitter (for 12 Lines) with Code “1“
1 pc Receiver
1 pc Battery 9V, IEC 6LR61
2 pc Crocodile Clamps
1 pc Instruction Manual
