9185B Lan Cable Tester

Model:9185B
Price:0US$

9185B Lan Cable Tester/ Network cable Tester
• Designed for RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.
• The Lan cable tester can verify cable continuity, open,short circuit and miss-wired.
 Details



Lan Cable Tester/ Network cable Tester

Model: 9185B

Introduction
• The 9185B Lan cable tester is a newly designed tool,that can easily test the correct pin configuration of the RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.
• By comparing one transmitting end and the corresponding receiving end, the 9185B Lan cable tester also can test installed cable far away by using the remote receiving unit.
• The 9185B provides the variety for wiring check, such as cable continuity, open status, short status and miss wired.

Features
• Designed for RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.
• The Lan cable tester can verify cable continuity, open,short circuit and miss-wired.
• The remote receiving unit is available for installed cables far away either on the wall plates or on the patch panels.
• Auto and manual scan function.
• Ground wire test.
• Lock status function.
• Buzzer sound warning for wire status.
• Display: LED indication for wire status.
• Meets EN61326-1

Operation
Loopback test
• Plug one end of the testing cable into the Rj45 jack of sourcing end on the master unit and another end of the testing cable into the RJ-45 jack of receiving end on the master unit.
• Press the "" button, the master unit will start a sequential scanning process if the master unit is in "auto-scanning" mode.
• Press the "" button, the pin1 LED lamps of the LED indicators will be alight if the master unit is in "manual scanning" mode.
• Note: When the battery power is low, the testing results may not be correct. Please replace with a new battery.
• You can choose a auto-scanning mode or a manual scanning mode by pressing the "AUTO" button or the "MANU" button.
• The Lock function is available in "auto-scanning" mode.
• When the loop is "OPEN", you will hear the sound of the buzzer.

Remote test
• Plug one end of the testing cable into the Rj45 jack of sourcing end on the master unit and another end of the testing cable into the RJ-45 jack of the remote receiving unit, then make tests.
• Read the testing results from the LED indicator on the remote receiving unit.

Specifications:
Display
ELD
Operating Temperature
0~40
Power Source
9V x 1 Battery
Dimensions
Master: 132(L) x 55(W) x 39(H)mm
Remote receiving unit: 74(L) x 30(W) x 25(H)mm
Weight
Master: 148g
Remote receiving unit: 33g

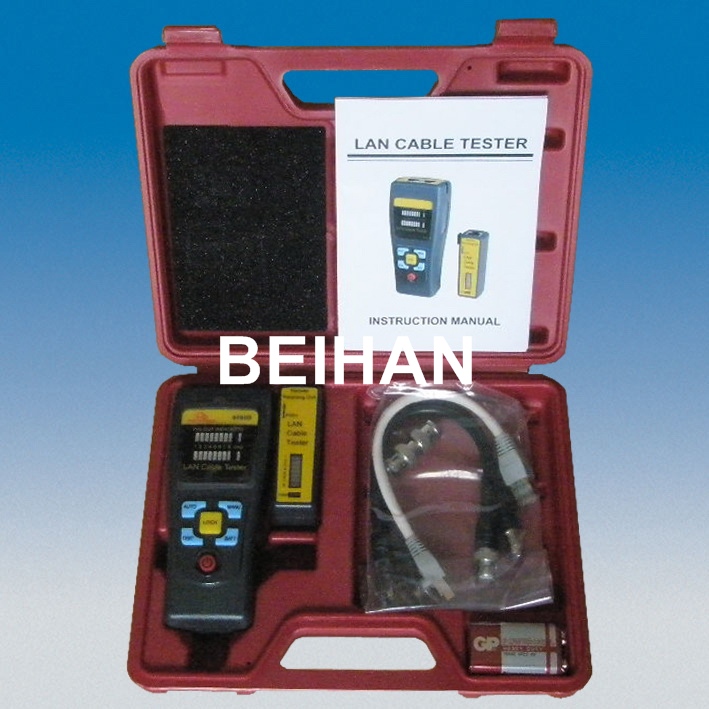

Scope of Supply:
1 pc 9185B
1 pc Carrying pouch,
1 pc batteries 9V
1 pc Self-test Network cable
2 pc BNC Adapter cable
1 pc Instruction Manual

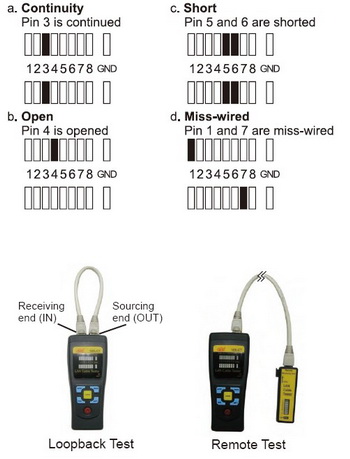

Test result
