- Fuse Circuit breaker and fault finder
90188 Cable Locator
Model:90188

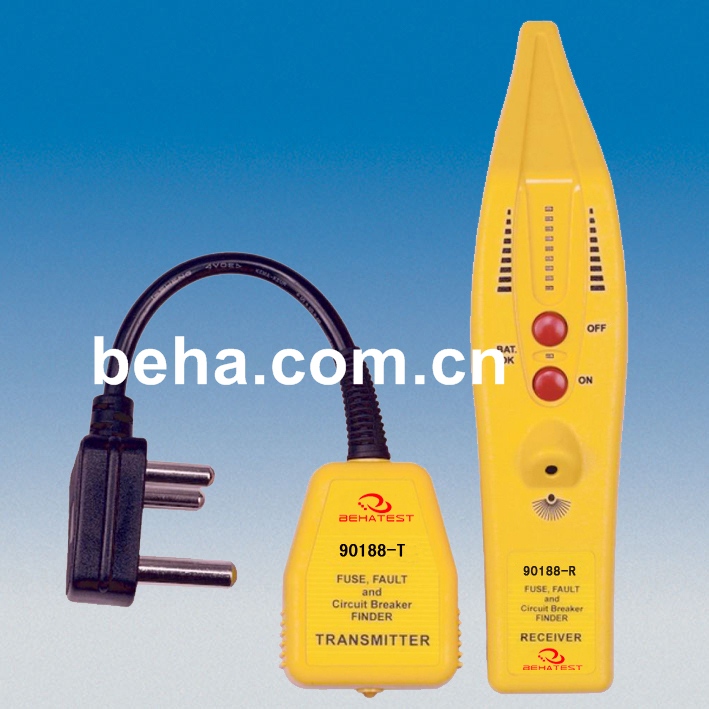

● The 90188 is a Fuse and Fault Finder which comprises of two parts:
The Receiver and the Transmitter.
● The Transmitter, draws a current from the mains supply circuit to which it is connected to The Signal Current from the is at about 10kHz. The Transmitter is powered by the mains and requires no batteries.
Details
Cable Locator & Phase Testers / Circuit Breaker Identifier
Model: 90188
Features:
● The 90188 is a Fuse and Fault Finder which comprises of two parts:
The Receiver and the Transmitter.
● The Transmitter, draws a current from the mains supply circuit to which it is connected to The Signal Current from the Tx is at about 10kHz. The Transmitter is powered by the mains and requires no batteries.
● The 10kHz signal current generated by the Transmitter is then searched (sniffed) by the Receiver to detect the Fuse, Circuit Breaker or the faulty circuit.
● Receiver is a tuned circuit which has it's center frequency tuned to about 10KHz. The sensor is located in the tip of the Receiver.
● The amplitude of the received signal is shown on a bargraph type LEDs. The more LEDs ON, the stronger the signal. Receiver uses one 9V battery.
Technical Data:
|
Receiver
|
|
|
Tuner Circuit Mid Frequency
|
10kHz
|
|
Bar Graph Leds
|
9
|
|
Battery Indicator Led
|
1
|
|
On Button
|
1
|
|
Off Button
|
1
|
|
Buzzer
|
1
|
|
Auto-off (Min) Approx
|
1
|
|
Power supply
|
1 x 9 V, IEC 6LR61
|
|
Dimensions
|
200 x 50 x 40 mm
|
|
Weight
|
112g
|
|
Material
|
Polycarbonate/ABS
|
|
Transmitter
|
|
|
Working Voltage
|
110 to 240 V/AC (50/60Hz)
|
|
Frequency of Sourced Signal
|
10 kHz
|
|
Dimensions
|
60 x 50 x 30 mm
|
|
Weight
|
134g
|
|
Connection
|
Specify type of plug
|
Application:
1)Locating and tracing of cables
1)Locating and tracing of cables
2)Finding Circuit Breaker/RCD
3)Finding Earth Fault
Make Sure All The Circuit Breakers Are On Now, for example, start scanning from the top left row, then go down etc..., But you can scan the breakers in any order. While you are scanning, observe the bar-graph and listen to the buzzer.
The Circuit breaker that supplies the Transmitter circuitry is the one, that (when pointed out by the tip) has the most LEDs lit on the bar-graph and the fastest buzz.
3)Finding Earth Fault
To find an earth fault, or the trace faulty wire, you must connect the transmitter in serie with the fault. For example, say, you have a short between Line and Earth, but you don't know where the short is.
Connect the Transmitter, using an adaptor, in serie, in the line. If the Protection device trips, then you will have to bypass the protection device for the duration of this test. Use the optional leads for this use.
Scope of Supply:
1 pc Transmitter
1 pc Receiver
1 pc Carrying case
1 pc Battery 9 V, IEC 6LR61
1 pc Instruction Manual
