- Multimeters

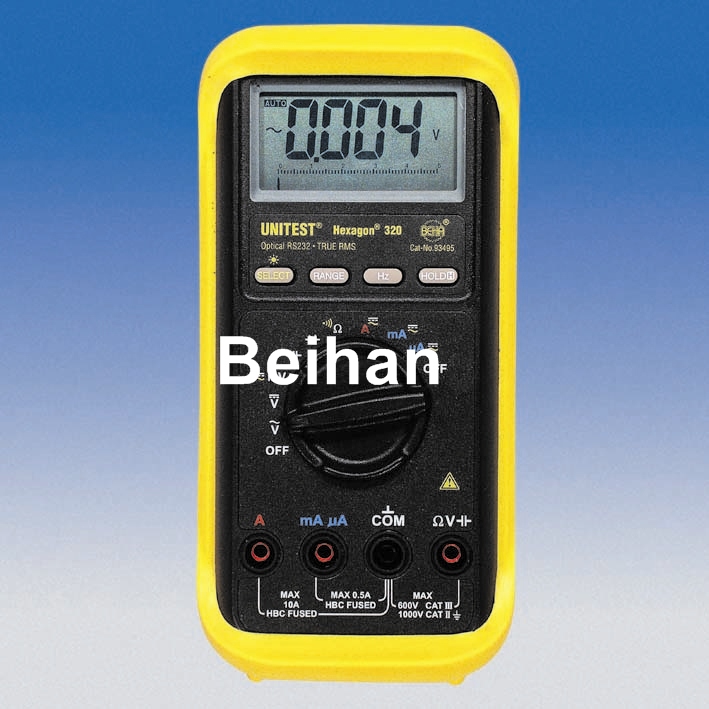

93495 UNITEST Hexagon 320
Model:93495
UNITEST Hexagon 320
True RMS Digital Multimeter 93495
• Voltage, Current and Resistance measurement
• Capacity and frequency measurement
• Diode and acoustic continuity test
Details
UNITEST Hexagon 320
True RMS Digital Multimeter
Model: 93495
Key Functions
• Voltage, Current and Resistance measurement
• Capacity and frequency measurement
• Diode and acoustic continuity test (response time < 100µs)
General Information
• Automatic and manual measurement range selection
• Integrated Data Hold
• 5 Amp current measurement range
• Sensitive 50 mV measurement range
• 50 ? measurement range, 10 m? resolution with test lead calibration
• Fast measurement value pick-up (5 measurements per second)
• Bargraph
• Backlight
• Long-term measurement in conjunction with notebook / PC
• Auto power off (switchable)
• Impact and shock-proof due to protective cover
• Calibration and adjustment without opening the case
True RMS Digital Multimeter
Model: 93495
Key Functions
• Voltage, Current and Resistance measurement
• Capacity and frequency measurement
• Diode and acoustic continuity test (response time < 100µs)
General Information
• Automatic and manual measurement range selection
• Integrated Data Hold
• 5 Amp current measurement range
• Sensitive 50 mV measurement range
• 50 ? measurement range, 10 m? resolution with test lead calibration
• Fast measurement value pick-up (5 measurements per second)
• Bargraph
• Backlight
• Long-term measurement in conjunction with notebook / PC
• Auto power off (switchable)
• Impact and shock-proof due to protective cover
• Calibration and adjustment without opening the case
Technical data
|
Display
|
3 5/6 digit, LCD, 5000 Digits
|
|
Measurement Ranges
|
|
|
Voltage AC
|
0.01 mV…1000 V
|
|
Tolerance
|
±(0.5 % rdg. + 3 Digits)
|
|
Voltage DC
|
0.01 mV…1000 V
|
|
Tolerance
|
±(0.08 % rdg. + 2 Digits)
|
|
Current AC
|
0.1 µA…10 A / 20 A (30 S)
|
|
Tolerance
|
±(0.6% rdg. + 3 Digits)
|
|
Current DC
|
0.1 µA…10 A / 20 A (30 S)
|
|
Tolerance
|
±(0.2% rdg. + 4 Digits)
|
|
Frequency Range for AC current/voltage
|
50 Hz…20 kHz
|
|
Resistance
|
0.01 ?…50 M?
|
|
Tolerance
|
±(0.1% rdg. + 2 Digits)
|
|
Frequency
|
5 Hz…125 kHz
|
|
Tolerance
|
±(0.01% rdg. + 2 Digits)
|
|
Capacity
|
0.01 nF…9999 µF
|
|
Tolerance
|
±(0.8% rdg. + 2 Digits)
|
|
Measurement Category
|
CAT IV / 600 V, CAT III / 1000 V
|
|
Pollution Degree
|
2
|
|
Safety complying with
|
IEC 61010, EN 61010, DIN VDE 0411
|
|
Power Supply
|
9 V, IEC 6LR61
|
|
Dimensions
|
198 x 97 x 55 mm
|
|
Weight
|
approx. 430 g
|
Scope of Supply:
1 pc UNITEST Hexagon 320
1 pc Protective Rubber Holster
2 pc Test Leads
1 pc Battery 9 V, IEC 6LR61
1 pc Instruction Manual
