9895B Non-Contact Phase Detector

Model:9895B
Price:0US$

9895B Non-Contact Phase Detector|Non-Contact Phase Sequence Indicator
• Non-contact detector clips. No metal contact points to promote greater safety.
• Dual functions :Open phase and phase sequence detection
• Designed for checking a wider range of 3-phase power source from 75V to 1000Vac
• Detects frequency range from 45 to 65 Hz
• LED display lights with buzzer indicator.
• Brightness button feature for better:visibility in dimly lit areas or sunlight.
• Magnetic mounting feature.
 Details






Non-Contact Phase Detector/ Phase Sequence Indicator

Model: 9895B

The 9895B Non-Contact Phase Detector provides greater safety from potential electrical shock with its non-contact clips.

Safety Phase Detector
Safety is always a priority in electrical work environments. With its non-contact clip design, the 9895B has been designed to ensure greater safety for its users. It eliminates any electrical or short circuit accidents caused by accidental contact between two metal points.

Features:
• Non-contact detector clips. No metal contact points to promote greater safety.
• Dual functions :Open phase and phase sequence detection
• Designed for checking a wider range of 3-phase power source from 75V to 1000Vac
• Detects frequency range from 45 to 65 Hz

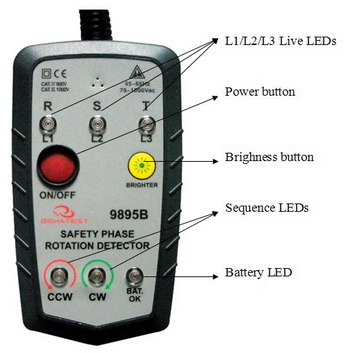

• LED display lights with buzzer indicator.
• Brightness button feature for better:visibility in dimly lit areas or sunlight.
• Magnetic mounting feature.
• Meets EN 61010-1 / EN 61326-1 / CAT III 1000V / CAT IV 600V

Specifications:
Measurement Principle
Static induction
Frequency Range
45-65Hz
Auto-Of
5 min. after power on without detection
Low Battery Warning
Power LED flashes at 7V±0.2 or less
Operating Temperature & Humidity
-10~50/ Max. 80% R.H.
Storage temperature
-20~60/ Max. 80% R.H.
Power Source
9V x 1 Battery
Dimensions
128(L) x 72(W) x 44(H)mm
Cable Length
Approx. 800mm
Weight
Approx. 380g (battery included)
Safety Standards
EN 61010-1/ EN 61326-1/ CAT III 1000V/ CAT IV 600V

Scope of Supply:
1 pc 9895B
1 pc Carrying pouch,
1 pc batteries 9V
1 pc Instruction Manual



Application examples:
