90860 Motor rotation and Phase Sequence Indicator

Model:90860

● Open Phase Indication
● Phase Sequence Indication
● Motor Rotation Indication

Details

Motor rotation and Phase Sequence Indicator

Model: 90860

Determination of the Rotary Field Direction
Within a three-phase system the sequence of the three phases connected determine the rotary direction of the motor connected. The correct phase sequence L1,L2, L3 results in a clockwise rotation.

Open Phase Indication
Phase Sequence Indication
Motor Rotation Indication

Features:
● Three functions in one unit. Including open phase, phase sequence and motor rotation indication
● Large size alligator clips. Can easily clip on switch-boards terminals.
● Highly reliable. Identifies 3 phase sequence and open phase check.
● Functional design. This model is ideal for installing conveyor lines, pump systems and interconnected drivers.
● EN 61010-1 CAT III 600V.

Technical Data:

Input Voltage	100-600V / AC
Frequency Range	45-70 Hz
Circuit Structure	All electronic (not mechanical)
Power Supply	1 x 9 V, IEC 6LR 61
Power Consumption	14mA of motor rotation field tester
AC Power Consumption	Approx. 7 mA
Safety complying	EN 61010-1
Measurement category	CAT III 600V
Dimensions	153 x 72 x 35 mm
Weight	Approx. 200g (battery included)

Scope of Supply:

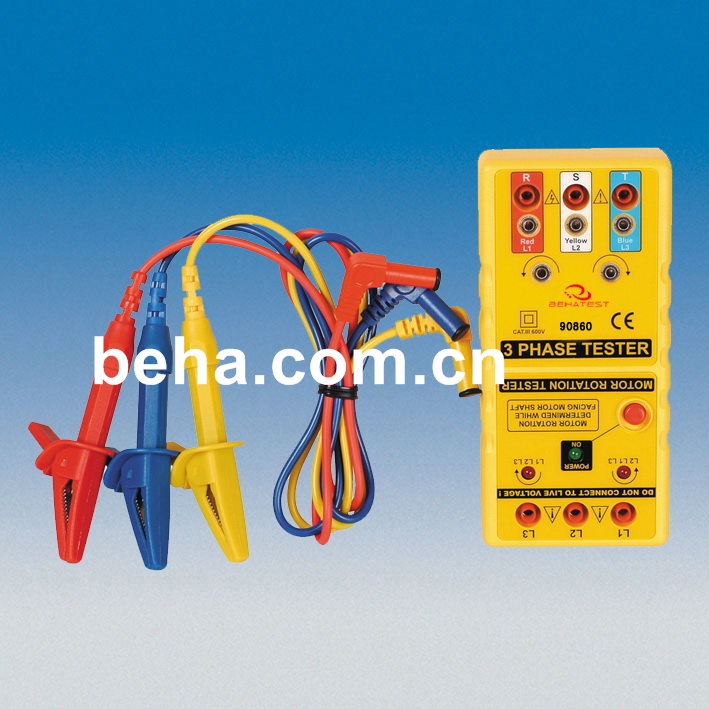

1 pc Phase Sequence Indicator 90860

3 pc Safety Test Leads With Crocodile Clamps

1 pc Battery 9 V, IEC 6LR61

1pc carry bag

1 pc Instruction Manual

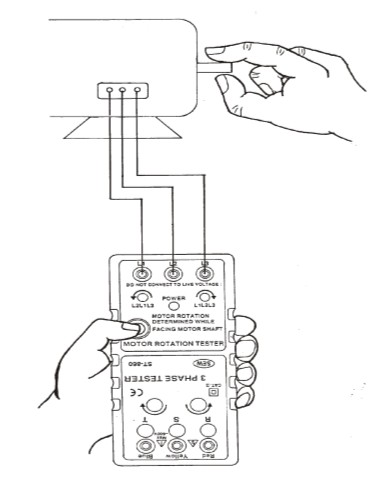

Operation of Motor Rotation Tester
